Product Overview

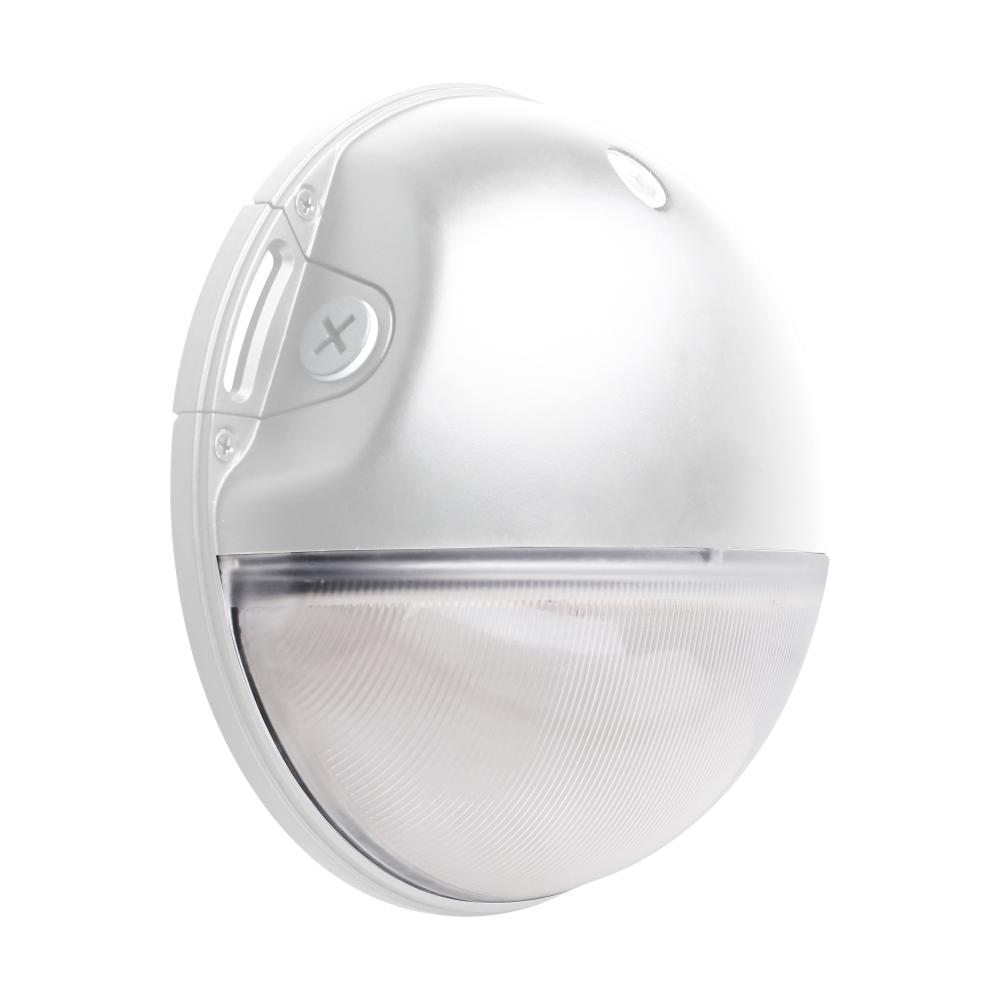

LED Small Round Wall Pack; 20W; CCT Selectable; Bypassable Photocell; 120-277 Volt; White Finish

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

White

Style:

Contemporary

Traditional

Modern

Option:

LED

Prop 65

Lumens:

1601-2600

Kelvin:

4001-4500

Refinement Options

Category:

Wall Pack

Sub Category:

Mini

Style:

Modern and Contemporary

Additional Info:

UV stabilized powder coated finish

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

8.699999999999999

Dimmable:

Yes-Dimmable

Each Height:

3.62

Each Length:

8.94

Each Width:

8.94

Lumens:

2600L-2800L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.167-0.072A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Angle:

100

B_U_G_Rating:

B1-U3-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Closet Rated:

No

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube:

0.1674

Each Quantity:

1

Efficacy:

130.00/135.00/140.00 LPW

FCC Compliant:

Yes

Feature 1:

DLC Premium

Feature 2:

Integrated Bypassable Photocell

Feature 3:

CCT Selectable

Feature 4:

UV Stabilized Powder Coated Finish

Feature 5:

IP65 Rated

Feature 6:

2.5KV Surge Protection

Feature 7:

0-10V Dimmable

Finish Family:

White

Fixture shape:

Round

Flicker Free:

Yes

Has Driver:

Yes

Has Emergency Battery:

No

HID Equiv:

100W

Incandescent Equivalent:

150W

Indoor Outdoor:

Outdoor

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Long Description:

SATCO NUVO's 65-752 CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy

Material:

Die-Cast Aluminum

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Color Box

Photocell:

Yes - Bypassable

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

3

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's CCT-selectable compact wall pack is the latest expansion in the popular line of Satco's commercial luminaires. This 20-watt white wall pack is just under nine inches in diameter, with superior light output and a convenient, easy to use

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

LED SMALL 20W ROUND WALL PACK

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Total Harmonic Distortion:

15%

Wattage Selectable:

No

Weight Lb.:

2.42

Manufacturer Info

Manufactured By:

Nuvo
