Part Number: S11635R1 / Vendor ID #: 27

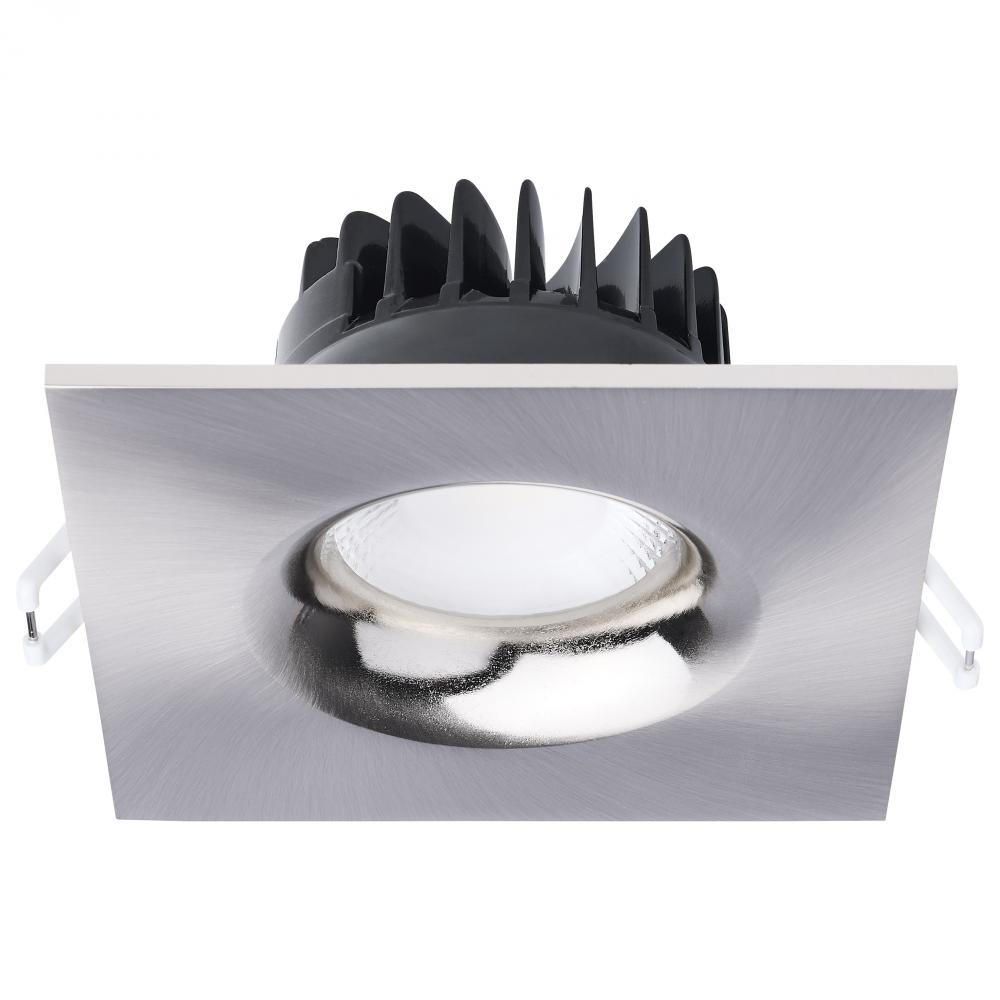

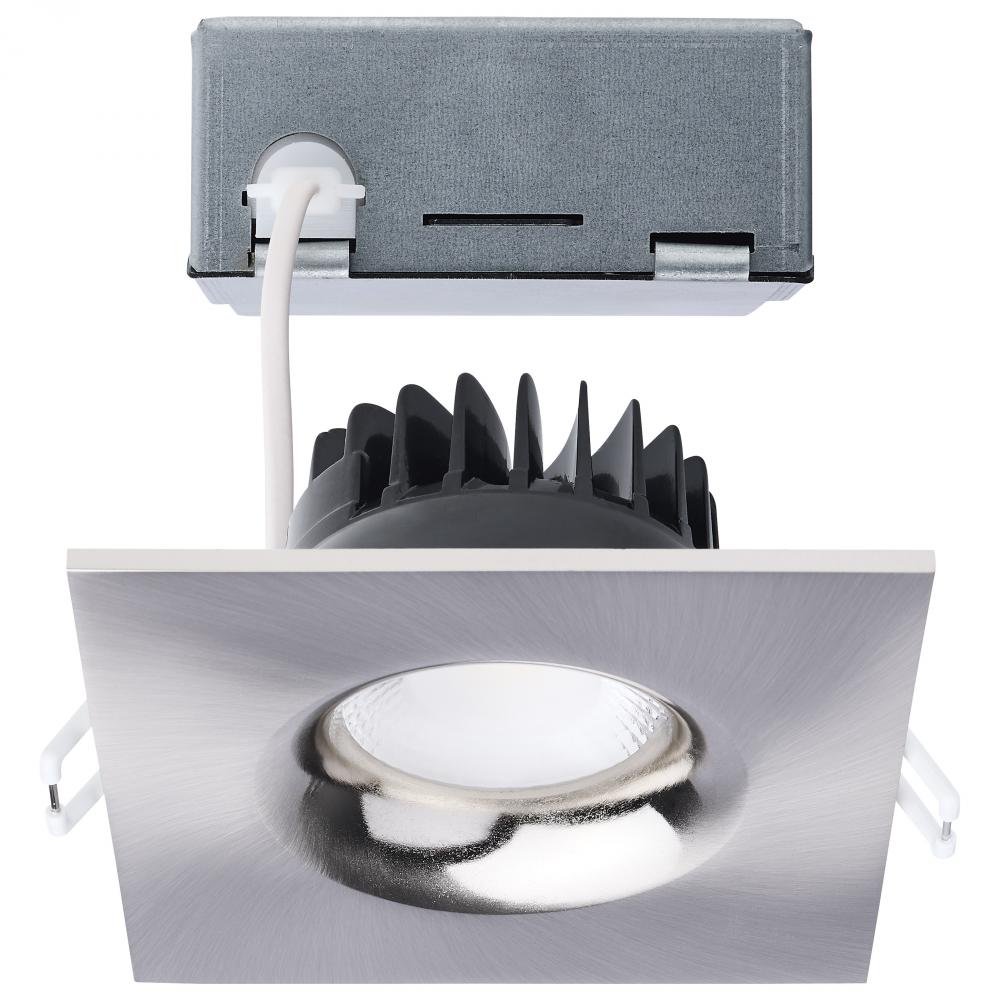

10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Square; Brushed Nickel
by Satco Products Inc.
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Item appears to be in stock and ready to ship

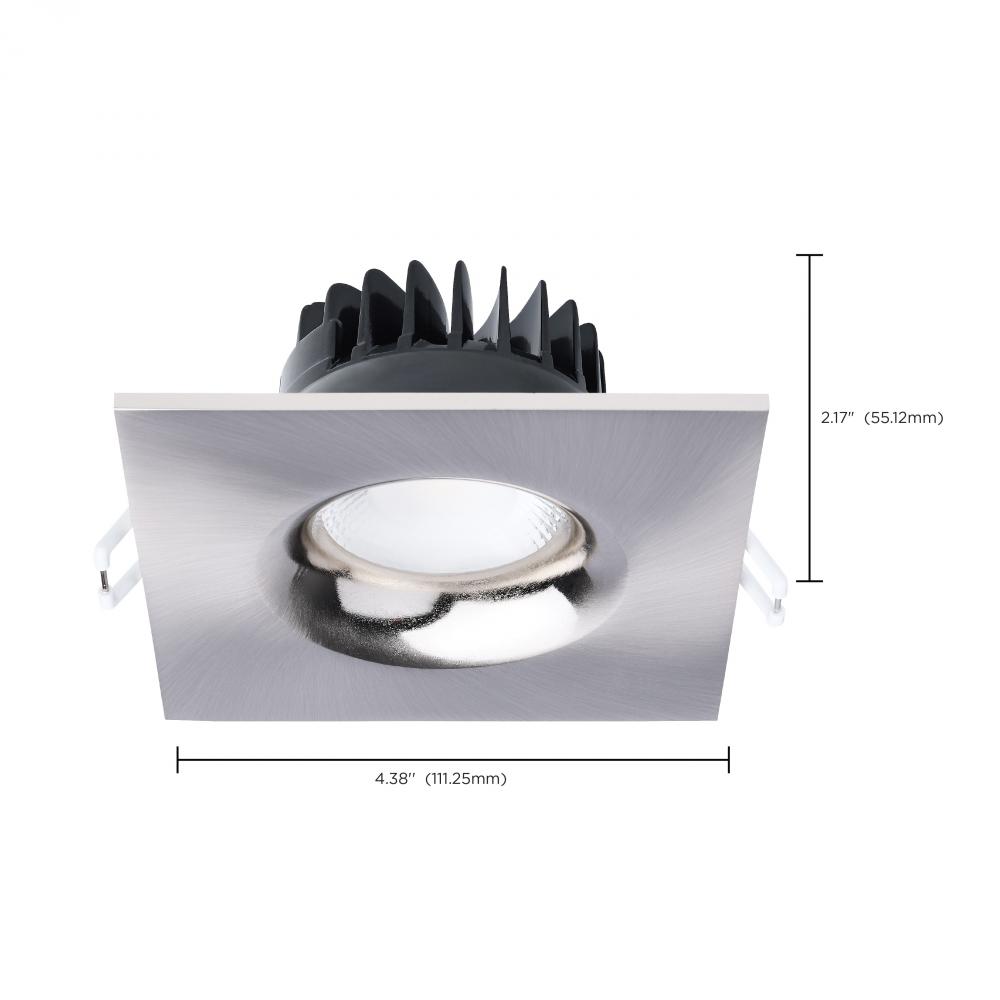

Dimensions
Height: 2.17"
Width: 4.38"
10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Square; Brushed Nickel Finish
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
LED
Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Length:
4.38
Lumens:
840L
Ship Carton Height:
5.51
Ship Carton Length:
5.31
Ship Carton Width:
3.74
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.100A
ANSI Base:
Integrated
Beam Spread:
40
CA Prop-65:
Lead
Carton Cubic Feet:
0.0633
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
120V only
Dimming Type:
Phase cut
Efficacy:
84.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-3798636
FCC Compliant:
Yes
Feature 1:
5-CCT Selectable
Feature 10:
Energy Star
Feature 2:
90 CRI for Excellent Color Rendering
Feature 3:
Dimmable Down to 10%
Feature 4:
Wet Location Rated
Feature 5:
10W
Feature 6:
840 Lumens
Feature 7:
Airtight
Feature 8:
IC Rated
Feature 9:
Title 24
Finish Family:
Nickel
Fixture shape:
Square
Has Camera:
No
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Acrylic
Long Description:
SATCO NUVO's LED Architectural Downlights with Remote Driver offers an option for a small aperture aesthetic with the energy savings of LED technology. The 40-degree beam angle provides focused illumination while creating the ambiance of your choice wi
Material:
Aluminum
Mounting Diameter:
3.62
Mounting Height:
3.5
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
51
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Architectural Downlights with Remote Driver offers an option for a small aperture aesthetic with the energy savings of LED technology. The 40-degree beam angle provides focused illumination while creating the ambiance of your choice wi
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
10W/DW/DNL3/CCT/SQ/RD/BN
Sloped Ceiling Compatible:
No

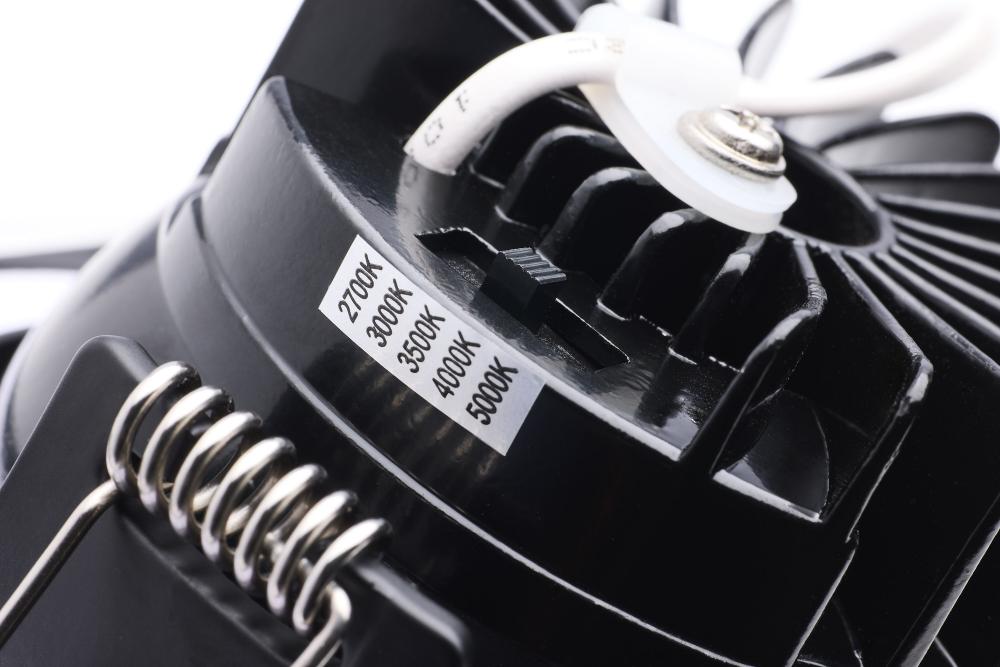

Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
Brushed Nickel
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.01
Manufactured By:
Satco Products Inc.
