Product Overview

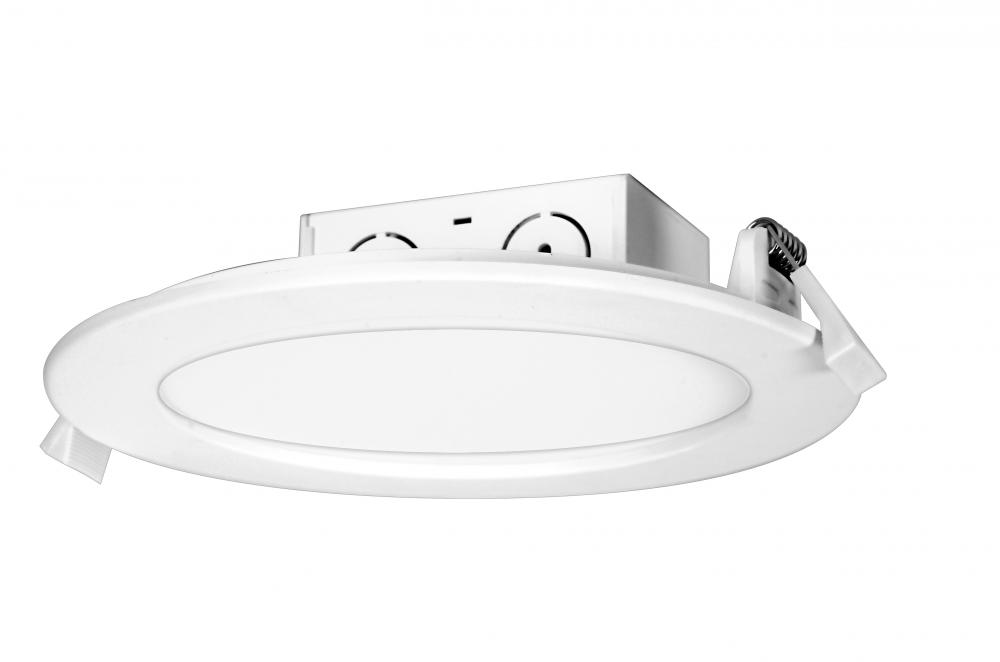

11.6 watt LED Direct Wire Downlight; Edge-lit; 5-6 inch; 2700K; 120 volt; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

40000

Bulb Kelvin:

Warm White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

7.13

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

730L

Ship Carton Height:

7.09

Ship Carton Length:

8.460000000000001

Ship Carton Width:

2.64

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.097A

ANSI Base:

Integrated

BAA Compliant:

No

Beam Spread:

100

CA Prop-65:

Lead

Carton Cubic Feet:

0.0916

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

6.4375 in. Cutout

Clearance Height:

2.36

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

120V only

Dimming Type:

Phase cut

Efficacy:

62.93 LPW

FCC Compliant:

Yes

Feature 1:

Integrated J-Box for Direct Wire Installation

Feature 2:

Edge-lit Technology

Feature 3:

Damp rated for indoor use

Feature 4:

H:1.94 D:7.13

Feature 5:

H:1.94 D:7.13

Finish Family:

White

Fixture shape:

Round

Has Emergency Battery:

No

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

SATCO NUVO's S39061 11.6-watt, LED 5-6 inch recessed fixture is edge lit. The direct wired downlight offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop

Material:

Thermal Conductive Plastics

Max Drywall Thickness:

3/4 in.

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.97

Quantity In Pack:

1

R9 Value:

58

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 11.6-watt, LED 5-6 inch recessed fixture is edge lit. The direct wired downlight offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilin

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

11.6WLED/DW/EL/5-6/27K/120V

Temperature (CCT):

2700K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

0.6

Manufacturer Info

Manufactured By:

Satco Products Inc.
