Product Overview

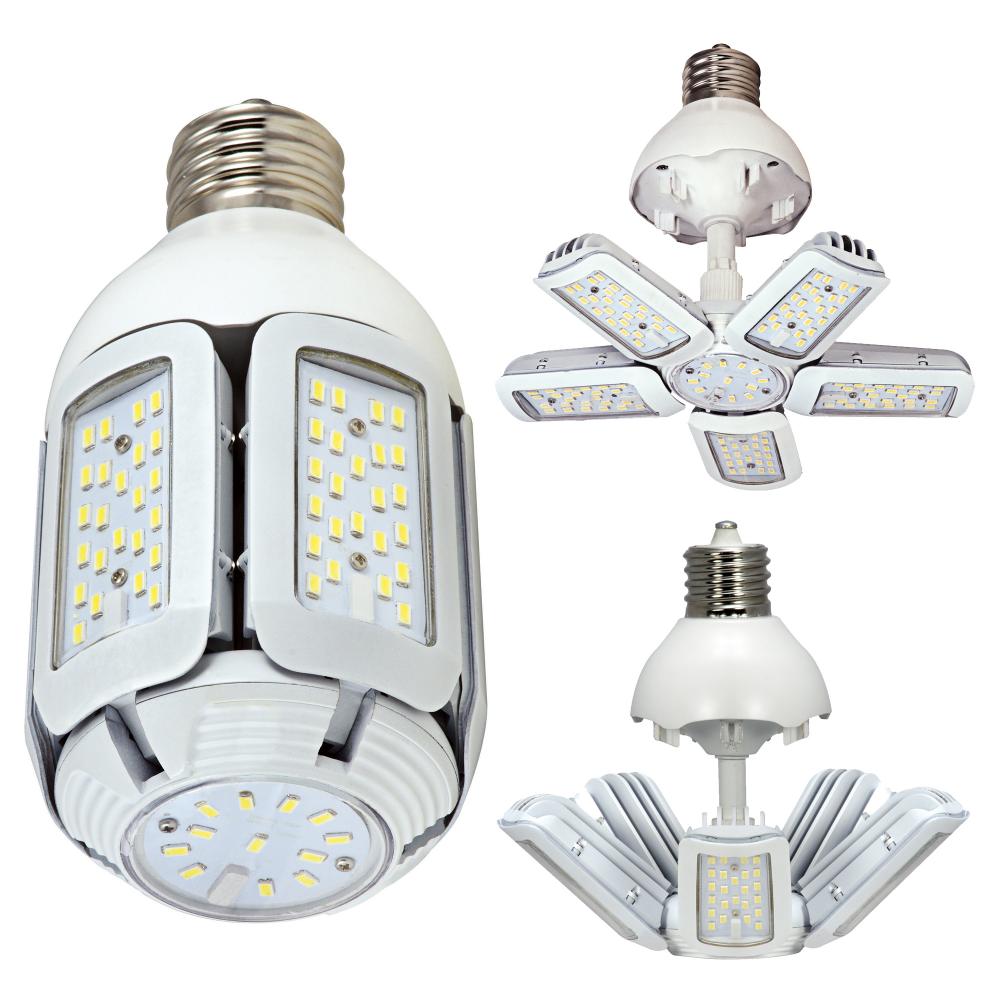

75 Watt - LED HID Replacement; 2700K; Mogul Extended base; Adjustable beam angle; 100-277 Volt

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2700K

Bulb Shape:

Corncob

Diameter:

4.08

EA Length:

5.39

Length:

8.460000000000001

Lumens:

9000L

Shap Carton Width:

5.39

Ship Carton Height:

9.84

Ship Weight:

3.11

Warranty:

5-Years

Weight:

2.4

Additional Info:

Width 360 deg 4.2 in.; Width 270 deg 9.3 in.; Width 180 deg 10.9 in.

BAA Compliant:

No

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

360

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.1654

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

120.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

105W

Has Camera:

No

Has Emergency Battery:

No

HID Equivalent:

400W

Housing Color:

White

Incandescent Equivalent:

750W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Wet

Minimum Compartment Size:

Length: 8.27 in. Width: 9.25 in. Depth: 9.25 in.

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Short Description:

75W/LED/HID/MB/2700K/100-277V

Surge Protection:

Built-in surge protection - 3KV

Technology:

LED

Thermal Management:

Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

75W

Manufacturer Info

Manufactured By:

Satco Products Inc.
