Part Number: 67/540 / Vendor ID #: 27

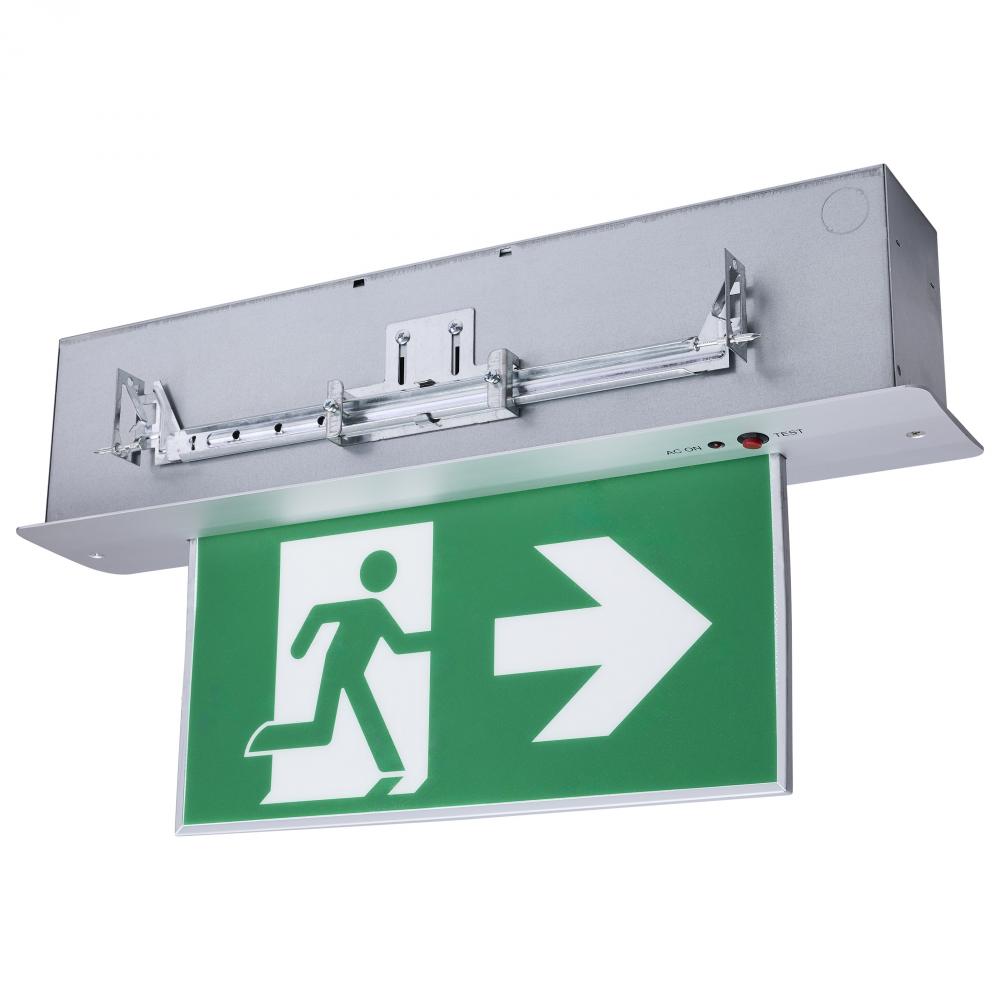

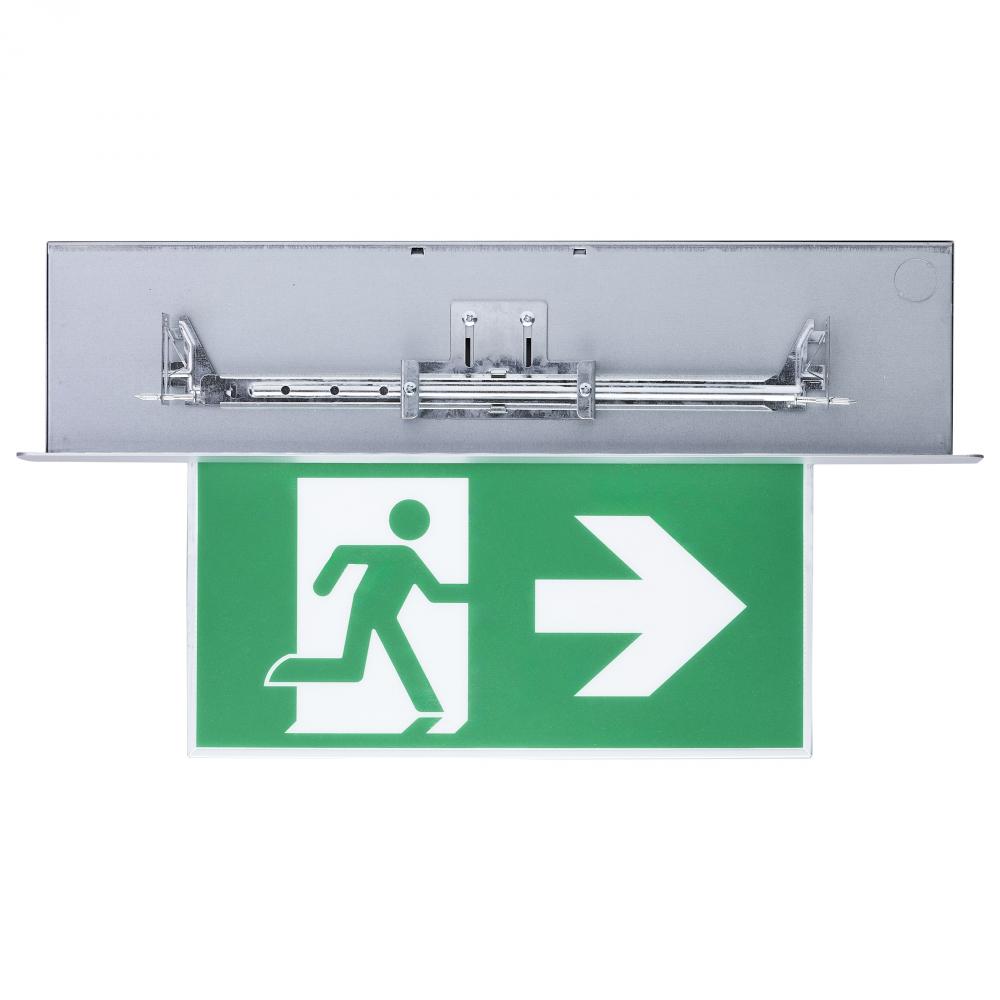

Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Premium Flush Recessed
by Satco Products Inc.
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Item is usually in stock, but we'll be in touch if there's a problem

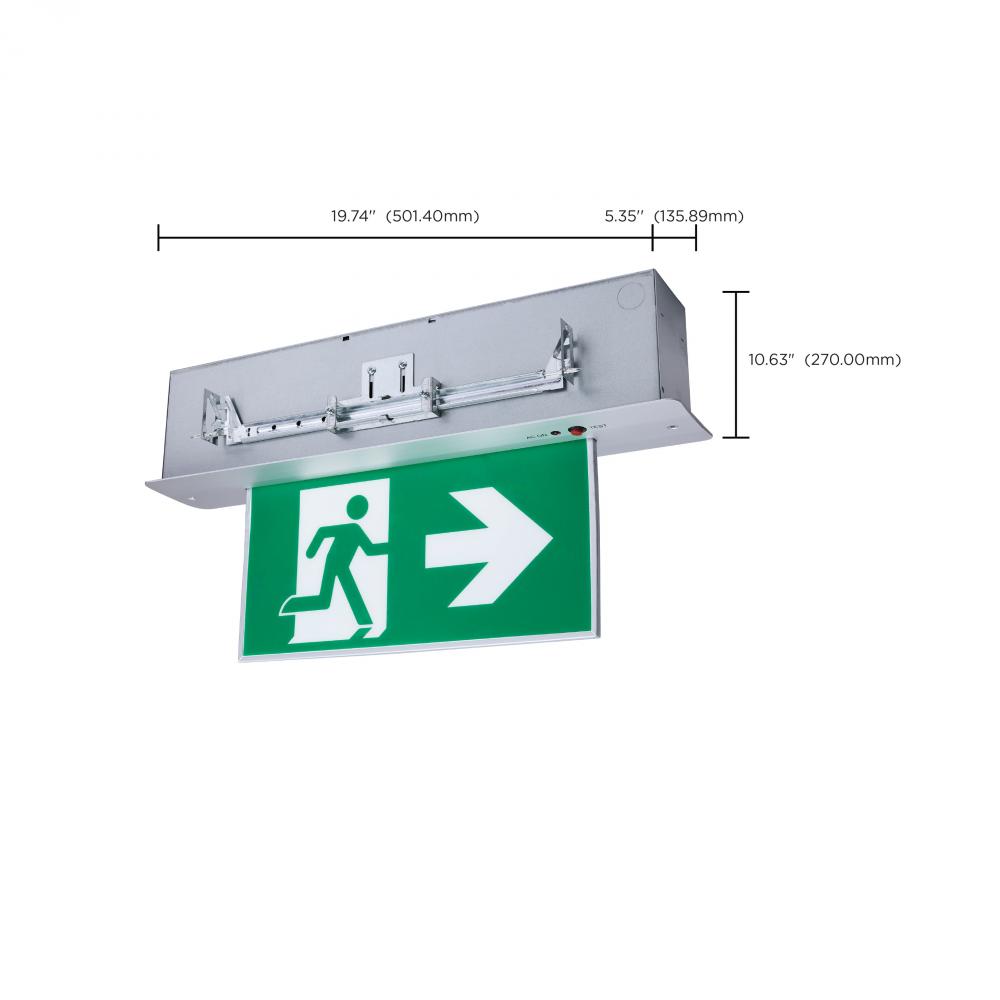

Dimensions
Height: 10.63"
Width: 19.74"
Running Man Green Edge Lit Exit Sign; 120-347V; 2HR backup; Single/Dual Face; Premium Flush Recessed Mounting
Option:
LED
Prop 65
Category:
Lighting Products
Sub Category:
Exit Sign
Style:
Utility
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Ship Carton Height:
8.07
Ship Carton Length:
20.28
Ship Carton Width:
6.77
Warranty:
2-Years
Amps:
0.0250-0.009A
ANSI Base:
Integrated
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.6412
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Non-Compliant - Only for sale in Canada
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Country Of Origin:
China
CRI:
80+
Depth:
5.35
Feature 1:
Single or Dual Face
Feature 10:
>500 Life Cycles
Feature 2:
Integrated Battery Backup
Feature 3:

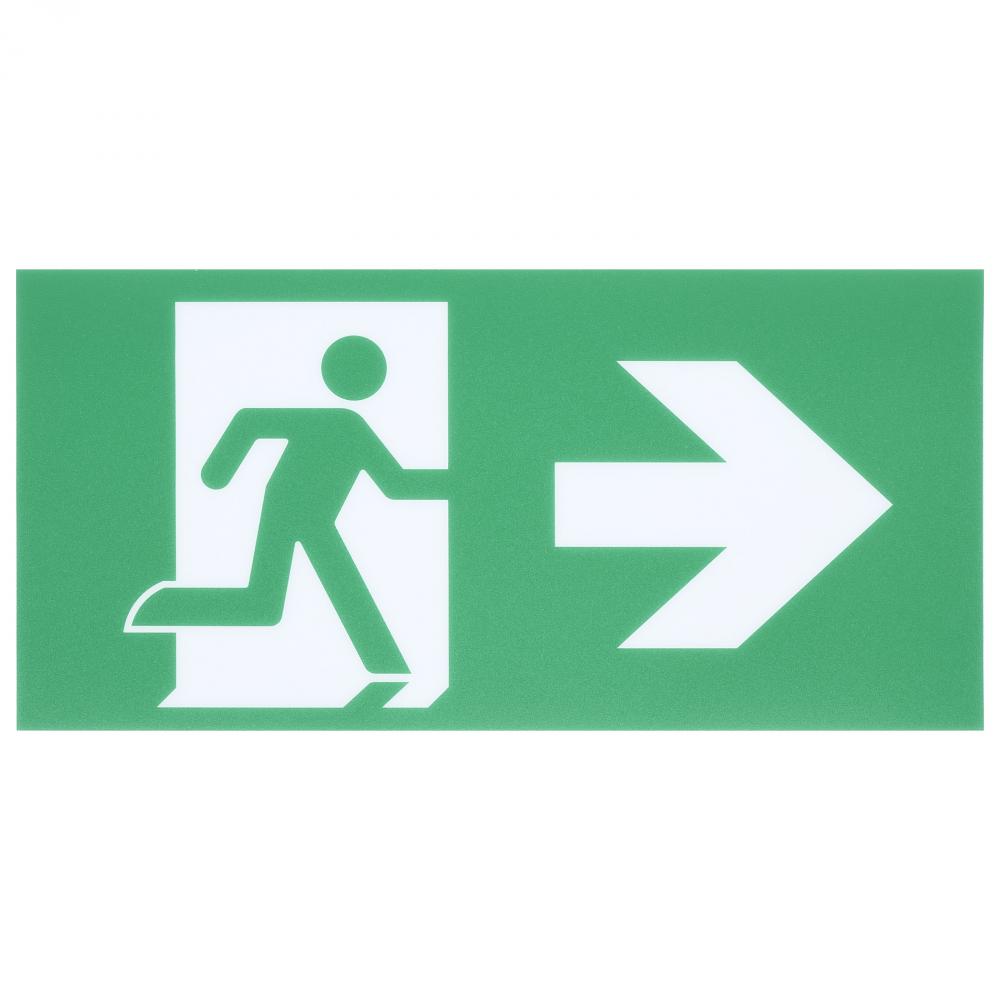

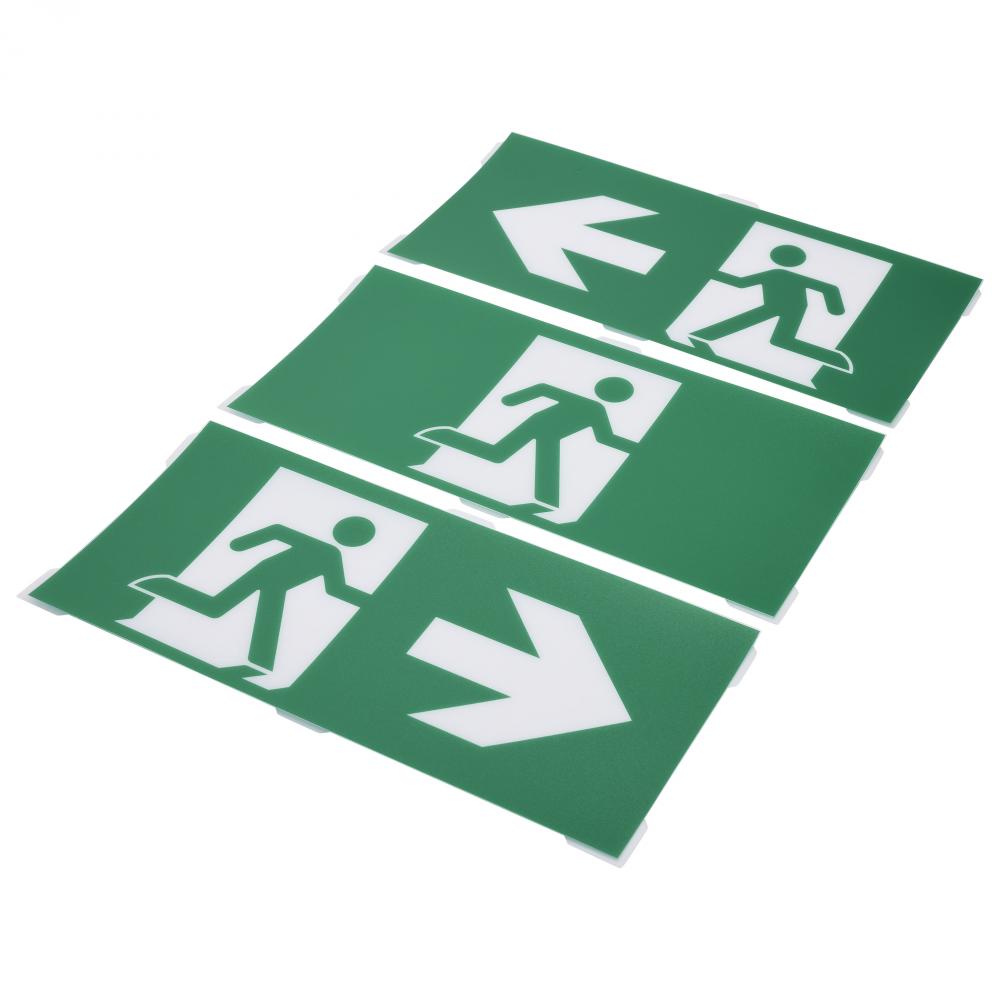

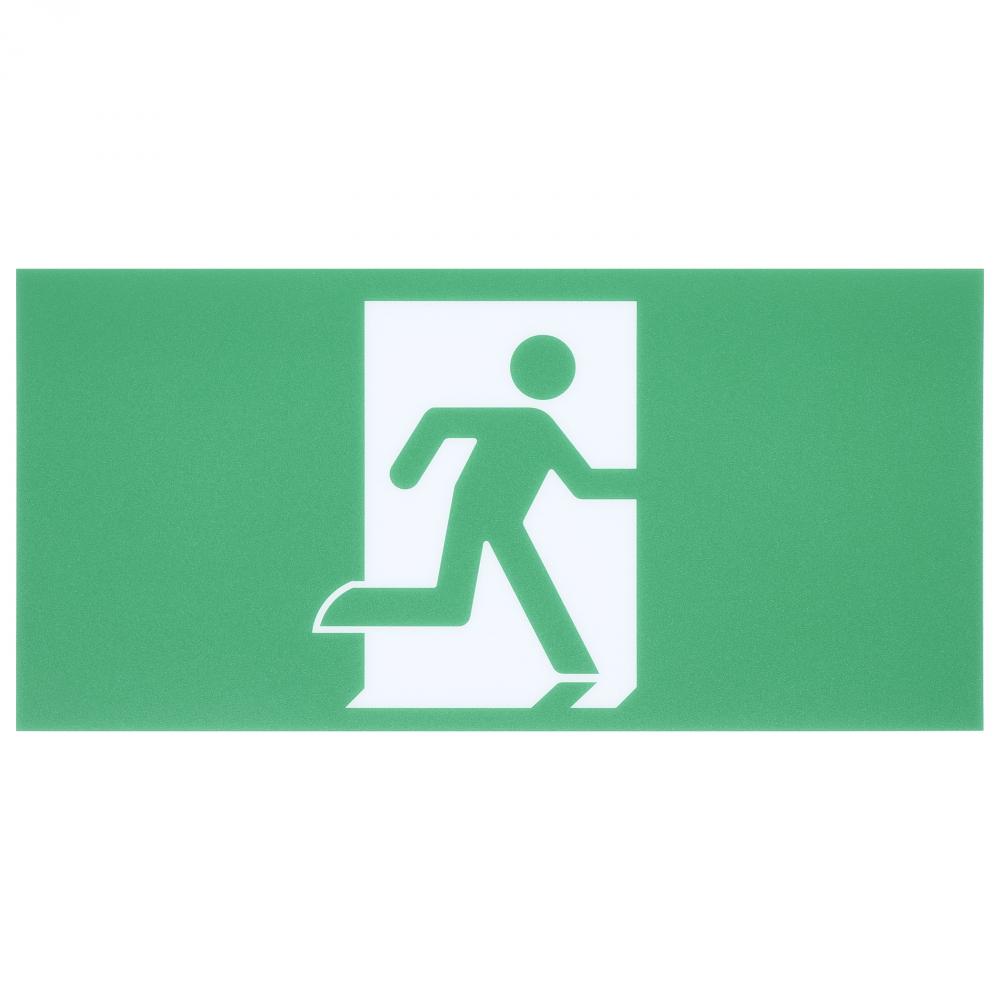

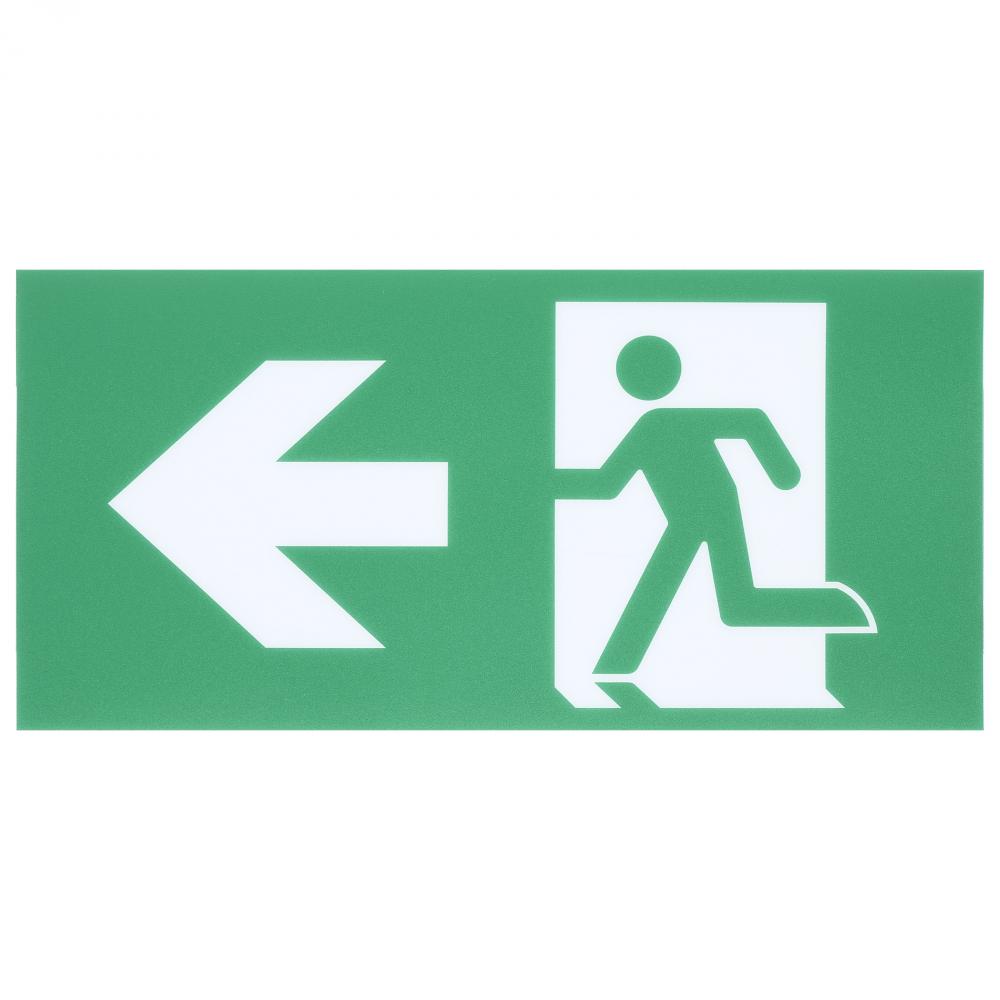

Interchangeable Pictograms
Feature 4:
Recessed Mounting; Accessories Included
Feature 5:
Damp Location Rated
Feature 6:
120-Minute Battery Run Time
Feature 7:
Complies with ICES-005 Class B
Feature 8:
CSA, OSHA, and NFPA Compliant
Feature 9:
Push-to-Test Button
Finish Family:
Metallic
Has Camera:
No
Has Emergency Battery:
Yes
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP40
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Acrylic
Long Description:
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs. These premium signs are field-customizable for single or dual face applications and include interchangeable pictogram films with direction arrows. With a clean aluminum faceplate
Material:
Aluminum
Mounting Procedure:
Universal
Operating Frequency:
50/60Hz
Operating Temprature:
+10C (+50F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.38
Quantity In Pack:
1
R9 Value:
15
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Keep your building safe and secure with the SATCO NUVO LED Running Man Signs and Emergency Light Combos. These premium signs are field-customizable for single or dual face applications and include interchangeable pictogram films with direction arrows. Comb
Safety Listing:
CSAus
SDS class:
LED_Fixture
Short Description:
EX SIGN-CAN-EL FL-AL
Sloped Ceiling Compatible:
No
Specification Notes:
Ni-Cad Battery; 120 minute discharge time; 24 Hour Recharge Time
Temperature (CCT):
5700K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
120%-140%
Wattage Selectable:
No
Weight Lb.:
6.61
Manufactured By:
Satco Products Inc.
