Product Overview

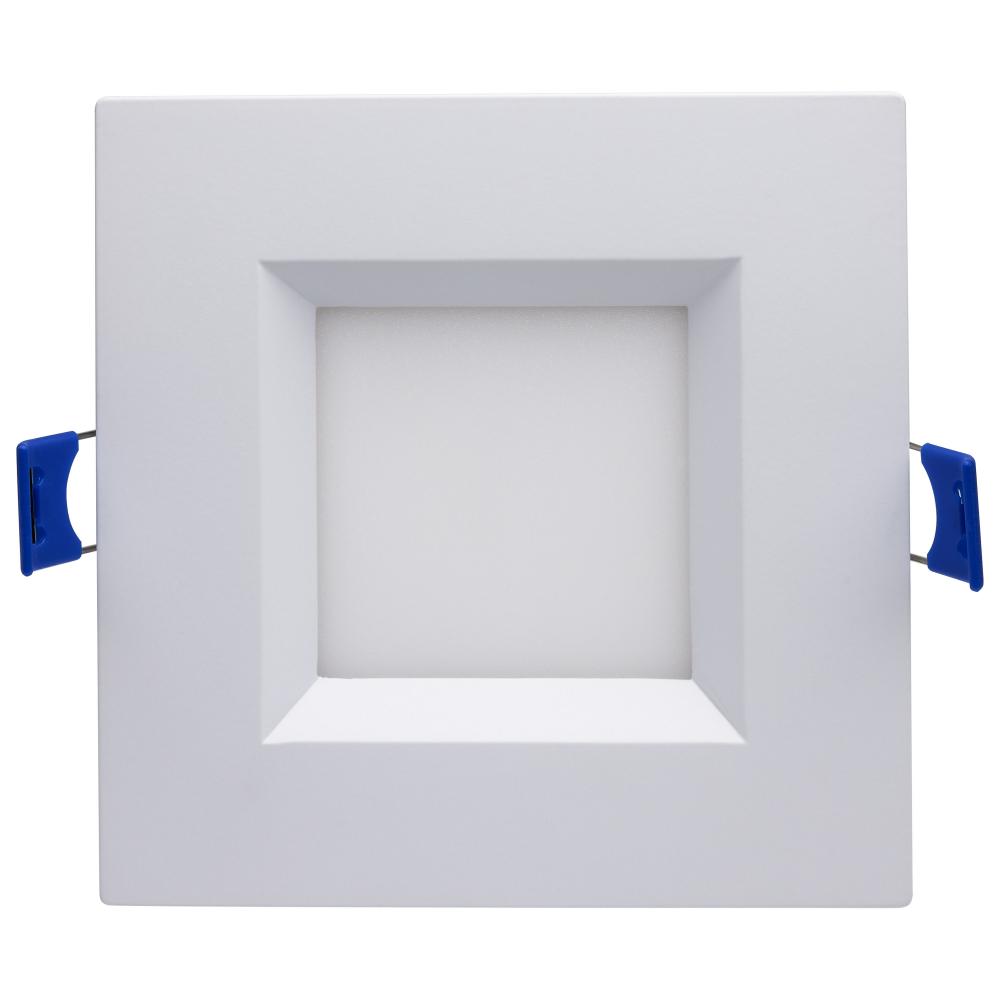

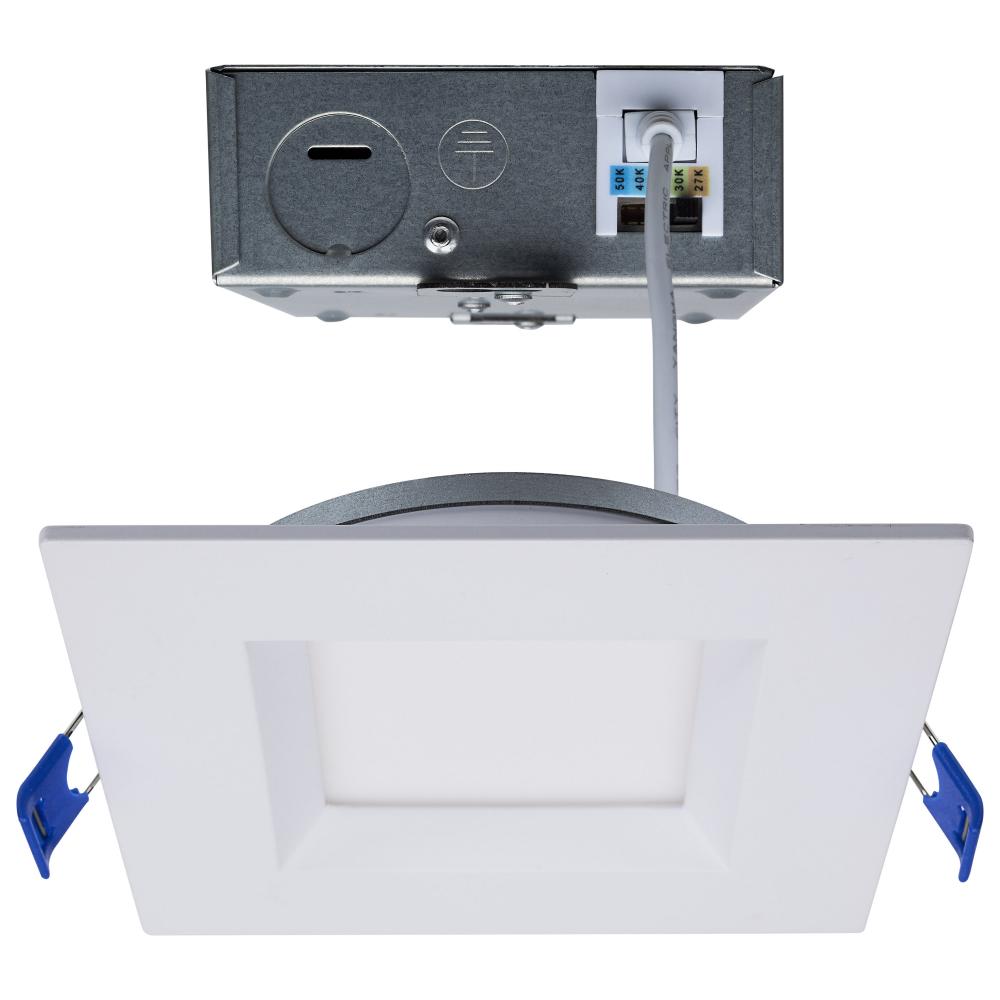

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Square Shape; White Finish; 120 Volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Wattage:

12w

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

5.06

Lumens:

750L

Ship Carton Height:

5.31

Ship Carton Length:

6.1

Ship Carton Width:

3.54

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

Beam Spread:

110

CA Prop-65:

Lead

Carton Cubic Feet:

0.0664

Cartons Per Unit:

1

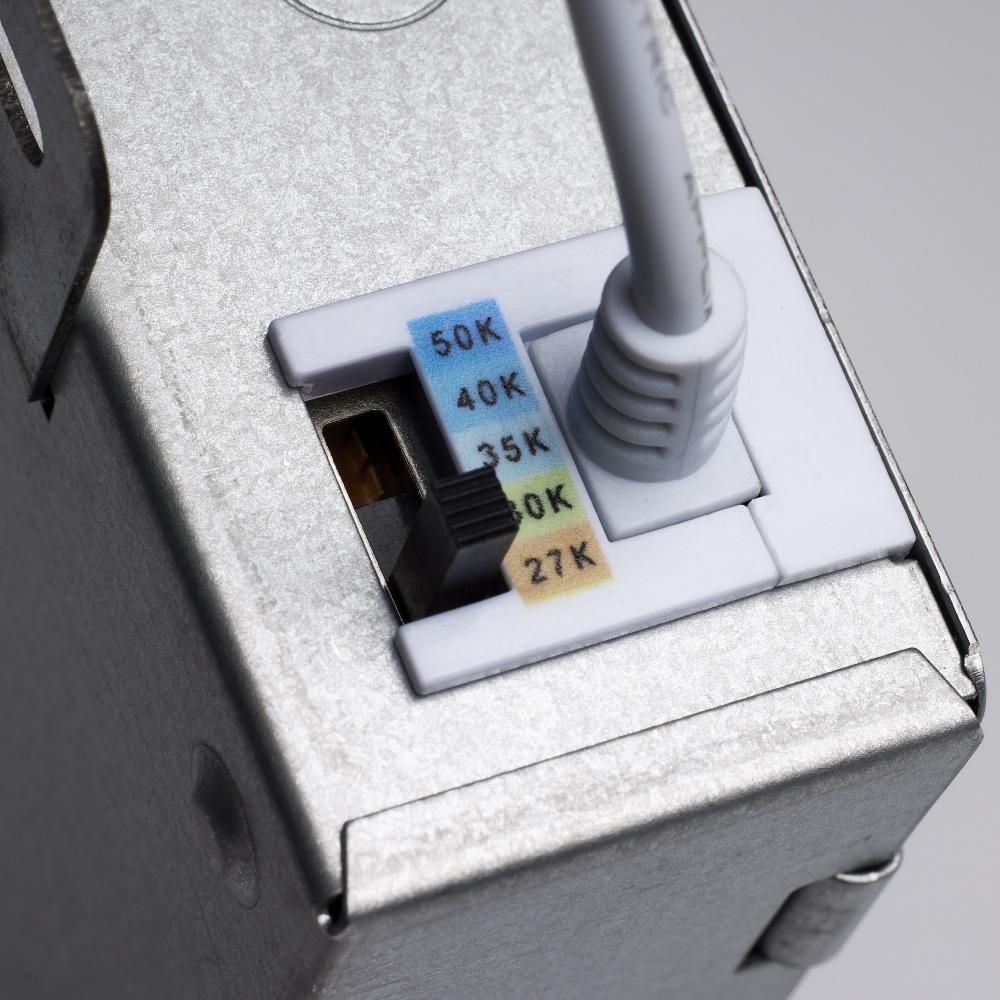

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.25 in. Cutout

Closet Rated:

No

Connection:

Direct Wired

Country Of Origin:

Thailand

CRI:

90+

Dimmable Down To:

100 to 10 percent

Efficacy:

62.50 LPW

FCC Compliant:

Yes

Feature 1:

CCT Selectable

Feature 2:

90 CRI

Feature 3:

Dimmable

Feature 4:

Wet Location Rated

Feature 5:

Rated for 50,000 hours

Feature 6:

5-Year Warranty

Feature 7:

FCC and RoHS Compliant

Finish Family:

White

Fixture shape:

Square

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

Installation Notes:

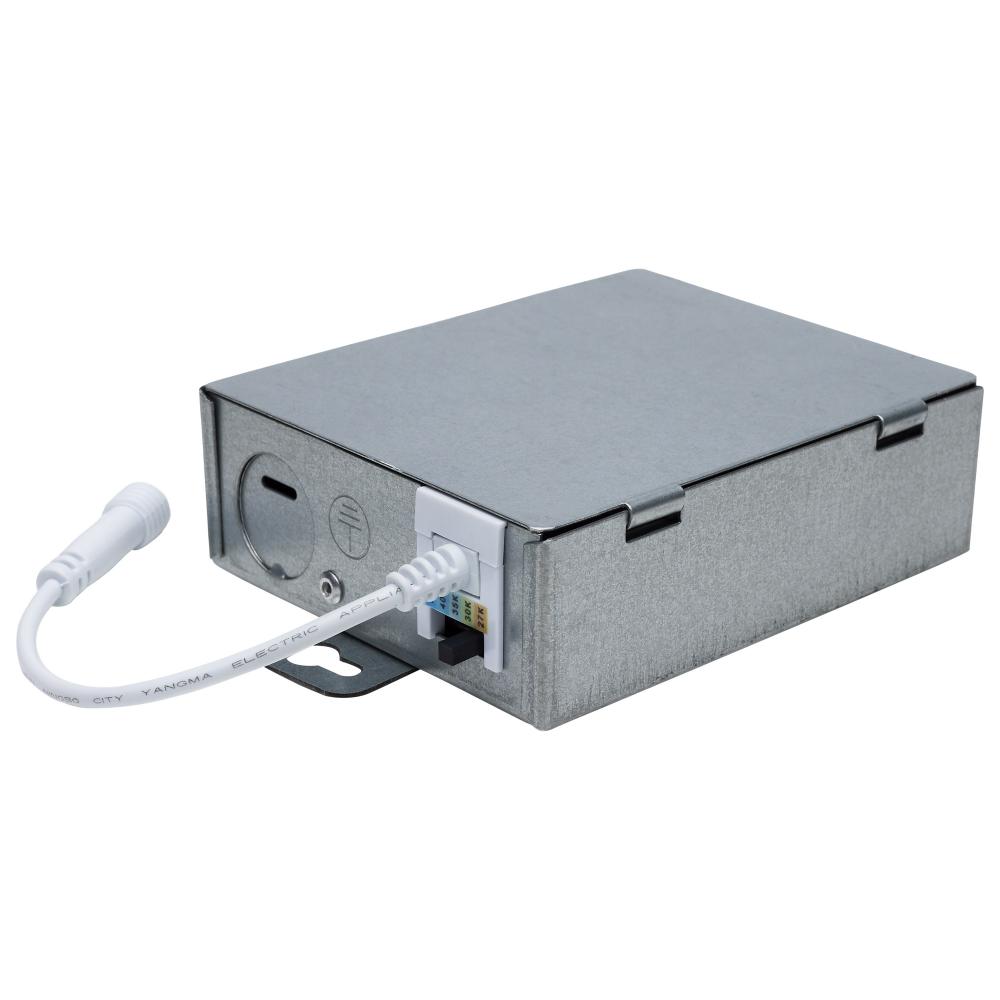

Driver Dimensions: 4.27 x 3.62 x 1.44

IOT Enabled:

No

IP Rating:

IP65

JA8 Compliant:

Yes

Lens Finish:

White

Lens Material:

Polystyrene (PS)

Long Description:

SATCO NUVO's S11871 Slim Fit 4 inch white square Downlight fixture delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and glare. Offering a range of five color temperatures from 2700K

Material:

Aluminum

Mounting Procedure:

Recessed Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.96

Quantity In Pack:

1

R9 Value:

93

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

The Slim Fit Downlight from SATCO NUVO delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from 2700K to 5000K, you can custom

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12WLED/DW/4/CCT-SEL/SQ/RD/WH

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

No

Weight Lb.:

1.03

Manufacturer Info

Manufactured By:

Satco Products Inc.
