Product Overview

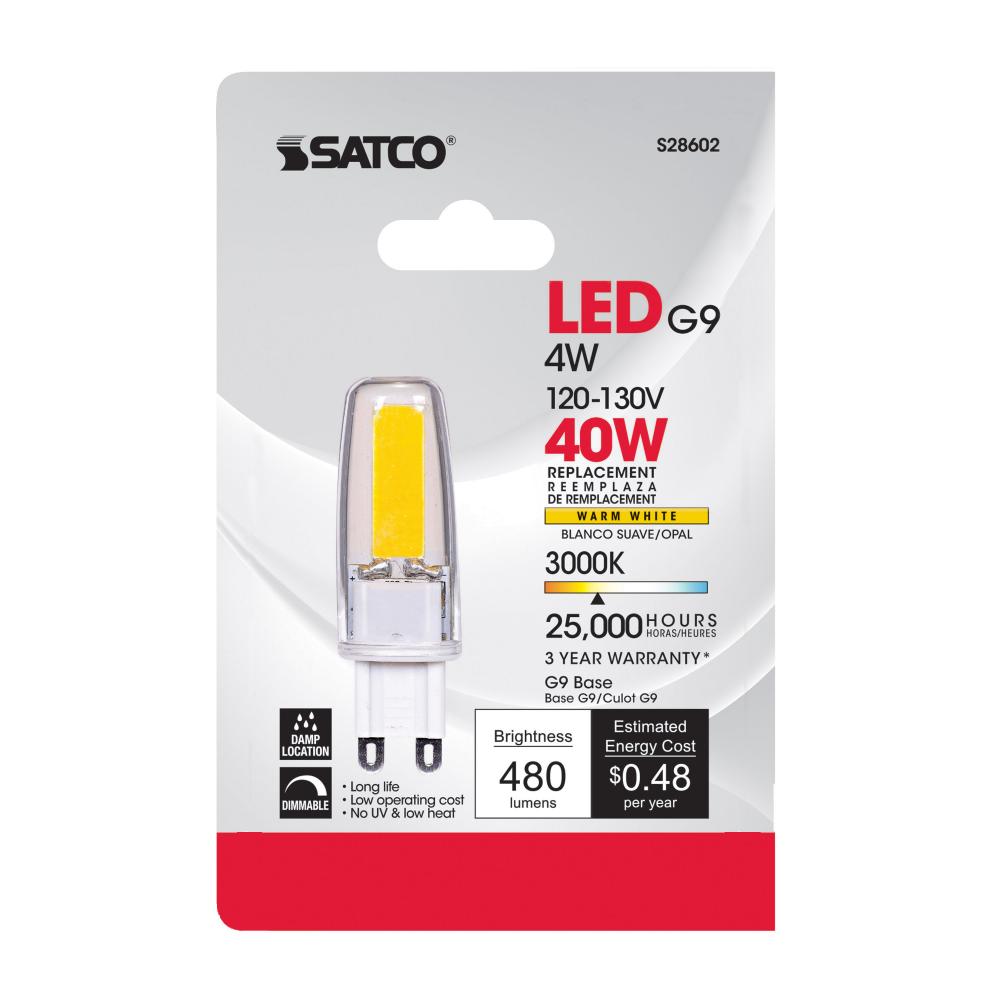

4 Watt; JCD LED; 3000K; G9 base; 120-130 Volt; Carded

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

Mini and Pin-Based LED

Volts:

120V-130V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

25000

Bulb Kelvin:

3000K

Bulb Shape:

T4

Diameter:

0.5

EA Length:

0.79

Harmonized Codes:

8539.52.0091

Length:

2.38

Lumens:

480L

Shap Carton Width:

4.13

Ship Carton Height:

6

Ship Weight:

0.03

Warranty:

3 Year Limited

Weight:

0.21

Additional Info:

Solid State LED lighting. 40W Halogen replacement

BAA Compliant:

No

Beam Spread:

360

Bulb ANSI Base:

G9

Bulb Base:

G9 Double Loop

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.0113

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimming Type:

Reverse Phase

DLC Approved:

No

Efficacy:

120.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

MOL: 2.38 inches, MOD: 0.50 inches

Feature 2:

Superior 80 CRI light quality, 480 lumens, 3000K warm white light, with a 360 beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp location rated

Feature 5:

Clear miniature glass bulb

Feature 6:

LED energy efficient fixture

Feature 7:

3 Year Limited Warranty

Flourescent Equivalent:

35W-50W

Housing Color:

None

Incandescent Equivalent:

25W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

No

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Location Rating:

Damp

Long Description:

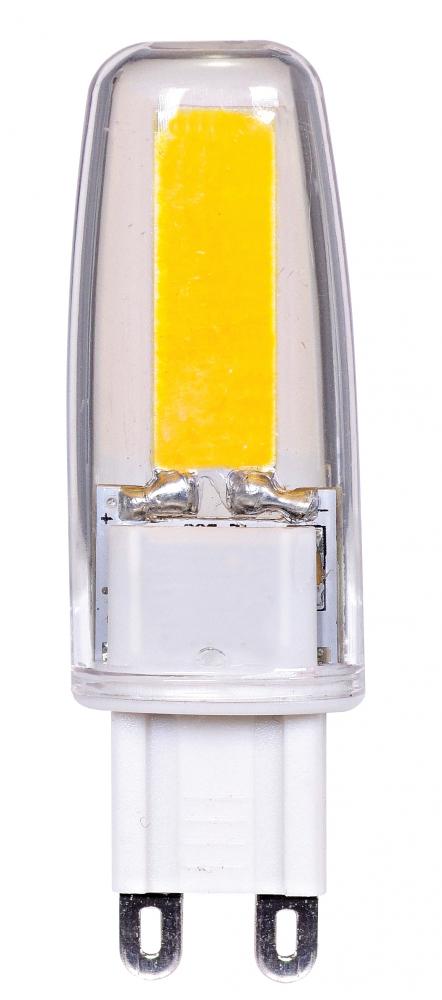

Satco's S28602 4 watt JCD G9 base miniature light bulb is shaped to fit into tight spaces without drawing too much energy. The clear, miniature bulb features a bi pin G9 base and a 360 degree beam spread. With a temperature of 3000 kelvins, this lamp p

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Carded

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Satco's 4 watt JCD G9 base miniature light bulb is shaped to fit into tight spaces without drawing too much energy. The clear, miniature bulb features a bi pin G9 base and a 360 degree beam spread. With a temperature of 3000 kelvins, this lamp provides

SDS class:

LED_Lamp

Short Description:

LED 4W G9 120-130V 3K DIM/CARD

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

4W

Manufacturer Info

Manufactured By:

Satco Products Inc.
